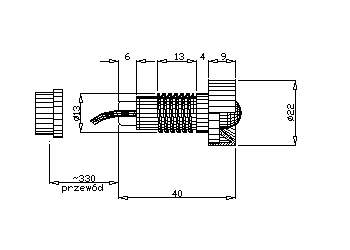

ø10:
colors:
(R)red635nm
(G)True green530nm
(Y)yellow590nm
(O)orange610nm
(B)blue470nm
(W)white*-
multi colors lamps
Specification
Supply voltage U= ~230V (AC)
Power consumption P=0.75W
IP 40
cable LGY 0,5mm2
warnning: Power is provided for 230V AC. We produce lamps for 24V too. It is possible to order different voltage value
parameters :(230V AC)
color | wavelenght [nm] | luminous intesity [mcd] |
mat | 635 | 140 |
clear | 635 | |
mat | 530 | 600 |
clear | 530 | |
mat | 590 | 220 |
clear | 590 | |
mat | 610 | 270 |
clear | 610 | |
mat | 470 | 210 |
clear | 470 | |
mat | - | 1300* |
clear | - | |
parameters :(24V AC/DC)
color | wavelenght [nm] | luminous intesity [mcd] |
mat | 635 | 780 |
clear | 635 | |
mat | 530 | 2300 |
clear | 530 | |
mat | 590 | 1200 |
clear | 590 | |
mat | 610 | 1400 |
clear | 610 | |
mat | 470 | 880 |
clear | 470 | |
mat | - | 6000* |
clear | - | |
mat : diffuse
* life of wite lamps is 10000h
|
