LED CONTROL LAMPS IN THE HOUSING: hanuLED

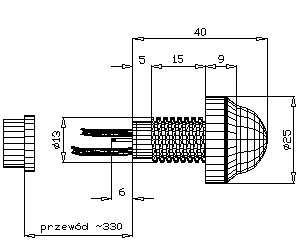

ø20:
fi10 fi10 colors:
(R)red635nm
(G)True green530nm
(Y)yellow590nm
(O)orange610nm
(B)blue470nm
(W)white*-
multi colors lamps

Specification
Supply voltage U= ~230V (AC)
Power consumption P=0.75W
IP 40
cable LGY 0,5mm2

warnning: Power is provided for 230V AC. We produce lamps for 24V too. It is possible to order different voltage value


parameters :(230V AC)
colorwavelenght [nm]luminous intesity [mcd]
mat625180
mat530180
mat590260
mat610150
mat47080
matx350*

parameters :(24V AC/DC)
colorwavelenght [nm]luminous intesity [mcd]
mat635900
mat530680
mat590980
mat610680
mat470270
mat-1600*
mat : diffuse
* life of wite lamps is 10000h
