LED CONTROL LAMPS IN THE HOUSING: hanuLED

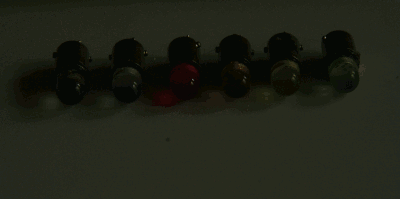

BA9s LED:
BA9S colors:
(R)red
(G)True green
(Y)yellow
(O)orange
(B)blue
(W)white*-
Specification
Supply voltage U= ~230V (AC)
Power consumption P=0.75W

warnning:Power is provided for 230V AC. We produce lamps for 24V too. It is possible to order different voltage value

parameters :(230V AC)
colorwavelenght [nm]luminous intensity [mcd]
mat635200
mat530330
mat590170
mat610
mat47090
mat-1000

parameters :(24V AC)
colorwavelenght [nm]luminous intensity [mcd] 24AC (0.2W)luminous intensity [mcd] 24DC (0.4W)
mat635200300
mat5307001300
mat5906001200
mat610
mat470250550
mat-22004500
mat : diffuse

* life of wite lamps is 10000h
